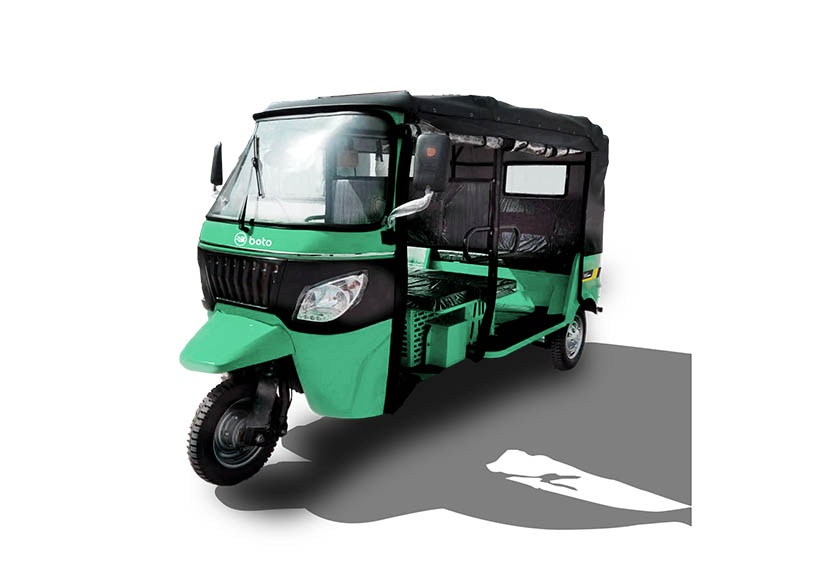

| 宝拓双排软顶燃油三轮客车技术参数及配置 Technical parameters and configuration of Baotuo double-row soft-top fuel three-wheeled bus |
|||
| 1 | 参数尺寸 Parameter size |
3380*1350*1820mm | |
| 2 | 动力型号 Power model |
200水冷 200wate-cooled |
|
| 3 | 前减震型号 Front shock absorber model |
43液压独臂外簧 43Hydraulic single arm outer spring |
|
| 4 | 前后轮型号 Front and rear wheel models |
400-12三轮互换 400three wheel interchange |
|
| 5 | 刹车状态 Braking status |
前鼓刹、后油刹 Front drum brake. Rear oil brakes |
|
| 6 | 收音机 radio |
支持USB. Supports USB |
|
| 7 | 风扇 fan |
12V | |
| 8 | 皮革顶棚 Leather ceiling |
1280*2550*150mm | |
| 9 | 前排座椅 | 1150*400mm | |
| 10 | 中间座椅 | 1180*360mm | |
| 11 | 后排座椅 | 1180*420mm | |
| 12 | 后排与前排座椅距离 | 430mm | |
| 13 | 备胎 spare wheel |
400-12 | |
| 14 | 包围 surround |
皮革 Leather |
|
| 15 | 后窗玻璃尺寸 Rear window glass size |
540*240mm | |
| 16 | 雨帘 curtain of rain |
透明塑料 Transparent plastic |
|
| 17 | 脚踏皮 Foot pedal |
皮革 leather |
|
| 18 | 设计速度 speed |
60/小时 60/hours |
|
| 19 | 爬坡角度 Climbing angle |
≦25度3公里 25degrees3kilometers |
|
| 20 | 油箱容积 Tank volume |
35升 35 liters |
|
| 21 | 续航里程 range |
400公里 400 kilometers |
|
| 22 | 净重 net weight |
480KG | |
| 23 | 载重 load |
700KG | |
| 24 | 轴距 wheelbase |
2500MM | |
| 25 | 轮距 Track width |
1030MM | |
| 26 | 离地高度 Ground clearance |
330MM | |
| 27 | 后桥状态 Rear axle status |
220油刹全浮 220 oil brake full pontoon |
|
| 28 | 仪表 instrument |
机械 Mechanical |
|
| 29 | 后悬挂 Rear suspension |
板簧 Leaf spring |
5片7KG 5 pieces 7KG |
| 30 | 后减震 Rear shock absorption |
弹簧 spring |
|
